Specifications
Product Specification Sheet
The Ewing SAM-M10Q GPS Module is a standalone GPS module compatible with with both Betaflight and Ardupilot based paltforms. It contains both a SAM-M10Q GPS and a QMC5883L magnetometor. Together these provide accurate, real-time position and heading to enable position hold, autonamous flight and other self guided modes of flight.
⚡ Electrical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3.3 V – 36 V DC |
| Regulated Output | 5 V DC |
| Typical Current Draw | ~10 mA @ 3 V (varies by mode) |
🧰 Mechanical & Physical
| Specification | Details |
|---|---|
| Weight | ~8 g |
| Dimensions | ~20 mm × 20 mm × 10.6 mm |

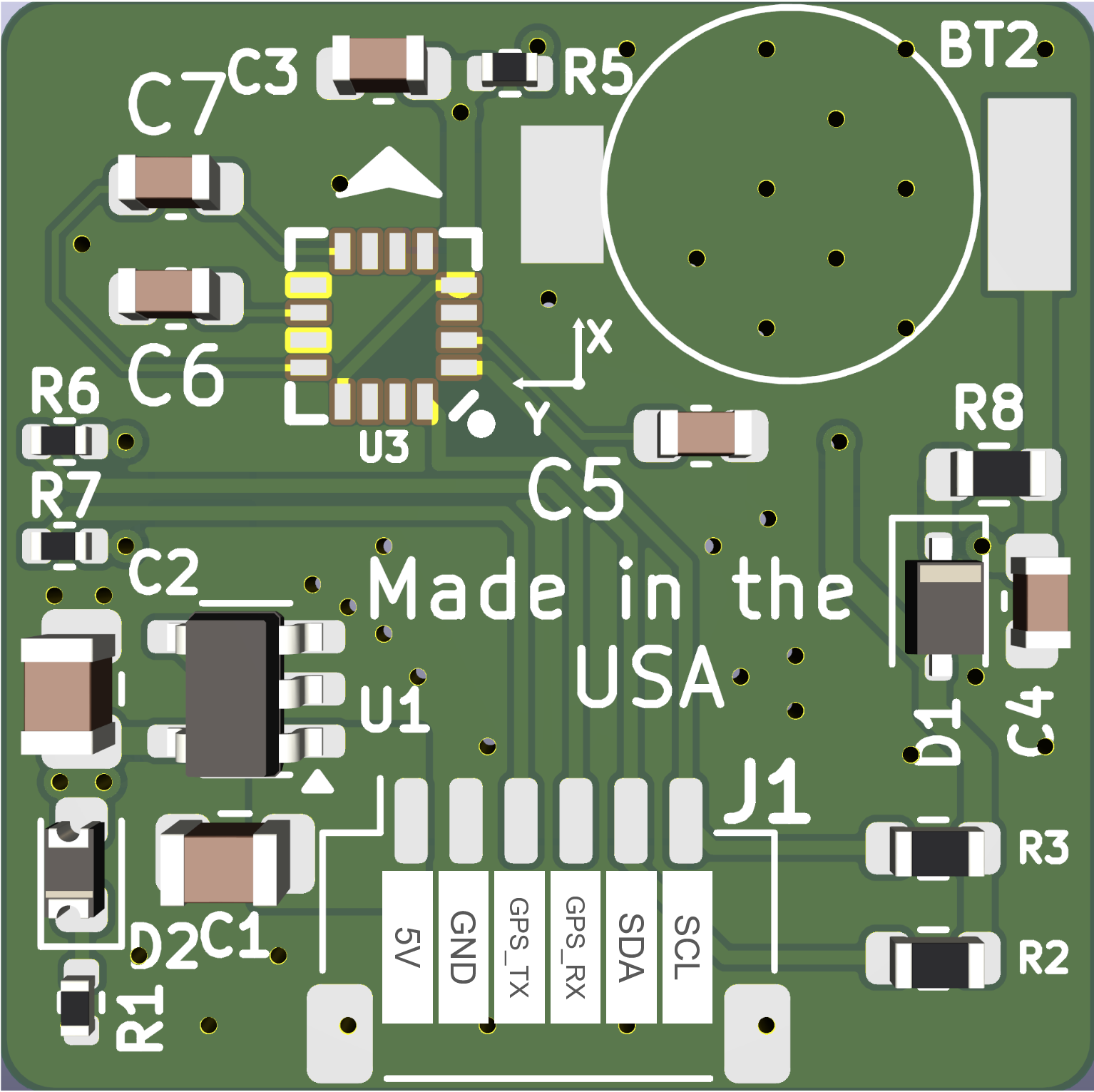

| Connector Type | 6-Pin JST |
📦 Package Contents
| Item | Description |
|---|---|
| GPS Module | Ewing SAM-M10Q GPS Module |
| Connector | 6-Pin JST |
⚠️ Integration Notes
- Place the module away from high EMI components for best performance.
- This module is not to be used for defense purposes.
Specifications subject to change as part of continuous improvement and validation testing.
